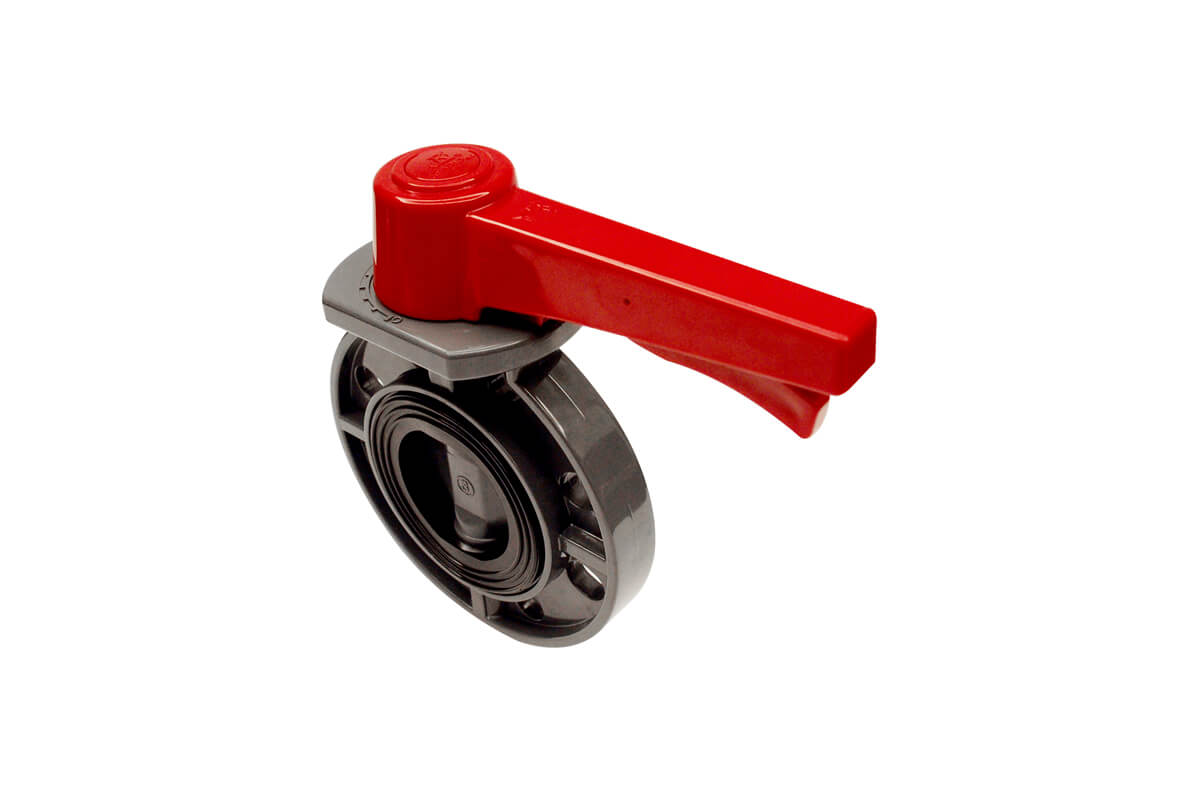

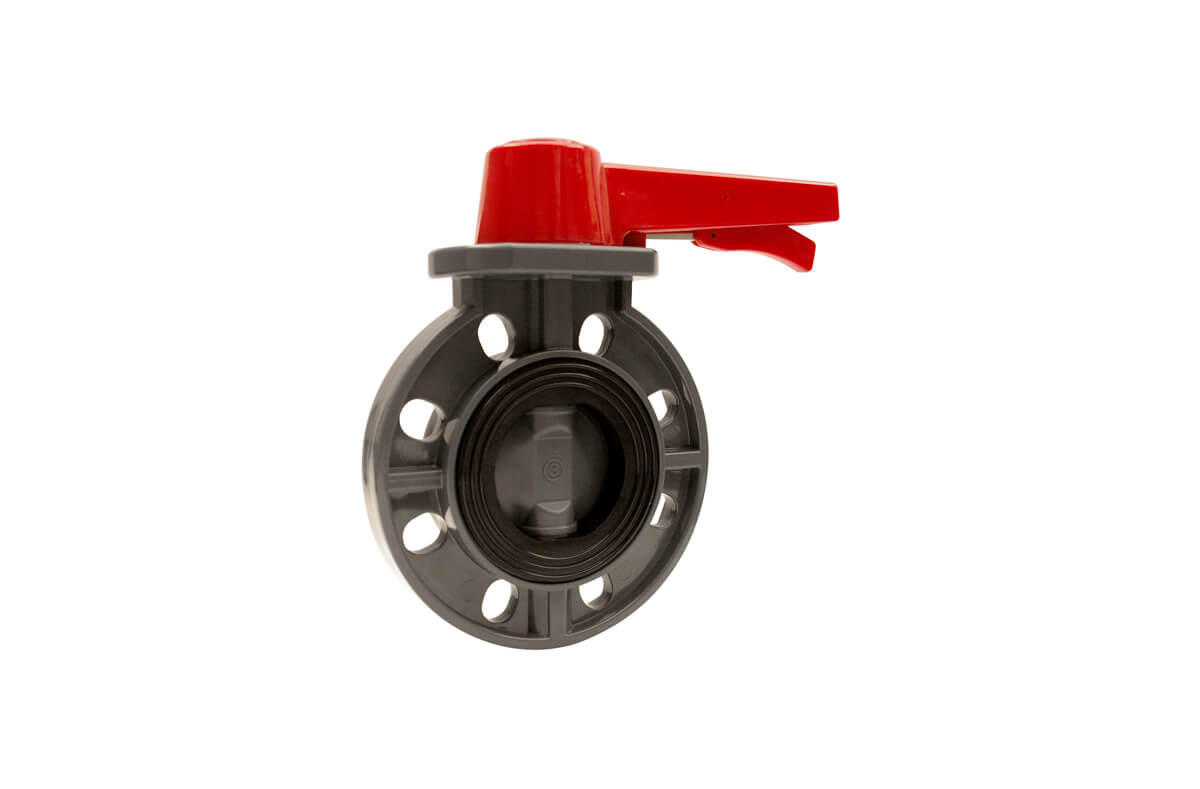

KDJ-700 BUTERFLY VALVE (HANDLE TYPE)

  • BUTERFLY VALVE (HANDLE TYPE)
  • BUTERFLY VALVE (HANDLE TYPE)

KDJ-700
BUTERFLY VALVE (HANDLE TYPE)

Applocations：

  • Pressure rating: 150 PSI @23°C(73.4°F)
  • Clearly indicate the opening angle via the scale on top of the valve body
  • Ideally suited in a limited piping space
  • Standard stem: SUS 410+ heat process (Alternative material: SUS 304/316/316L; lower pressure rate)
  • Platform design on top of valve body is suitable for Pneumatic Actuator and Electric Actuator installation
Inquiry
Specifications
Model No KDJ-700
Size 2” to 4”
Standard ANSI, BS, CNS, DIN, JIS
Material UPVC
Seat EPDM, FPM
O-ring EPDM, FPM
End type Flanged
No. Part Material Q'TY
1 Body UPVC 1
2 Disc PP 1
3 Seat Seal EPDM, FPM 1
4 Stem SUS 410 1
5 Stem O-ring EPDM, FPM 2
6 Disc O-ring EPDM,FPM 2
7 Inserted Nut C3604 3
8 Large Handle ABS 1
9 Small Handle ABS 1
10 Spring Lock ABS 1
11 Handle Insert Stainless Steel 1
12 Handle lever SUS 304 1
No. Part 材 質 Q'TY
13 Spring SUS 304 1
14 Spring Pin SUS 304 2
15 Washer SUS 304 1
16 Locking Plate SUS 304 1
17 Gear Seat PP+GF, UPVC, PVDF 1
18 Stem Washer SUS 304 1
19 Bolt SUS 304 3
20 Nut UPVC, PVDF 1
21 Insert Nut C3604 1
22 Level SUS 304 1
23 Rivet Stainless Steel 2
SIZE NOM. 50mm
(2")		 65mm
(2-1/2")		 80mm
(3")		 100mm
(4")
JIS D1 120 140 150 175
n-Øe 4-19 4-19 8-19 8-19
DIN D1 125 145 160 180
n-Øe 4-18 4-18 8-18 8-18
ANSI D1 121 140 152 191
n-Øe 4-19 4-19 8-19 8-19
D 165 185 200 229
D2 56.5 69.5 79.5 102.5
D3 105 120 123 135
L 199 199 199 252
H 248.5 267.5 277 316
H1 103 113 115 135.5
H2 82.5 92.5 100 114.5
H3 63 62 62 66
W1 43 46 46 56
W2 35 36 36 47
W3 94 94 94 100
