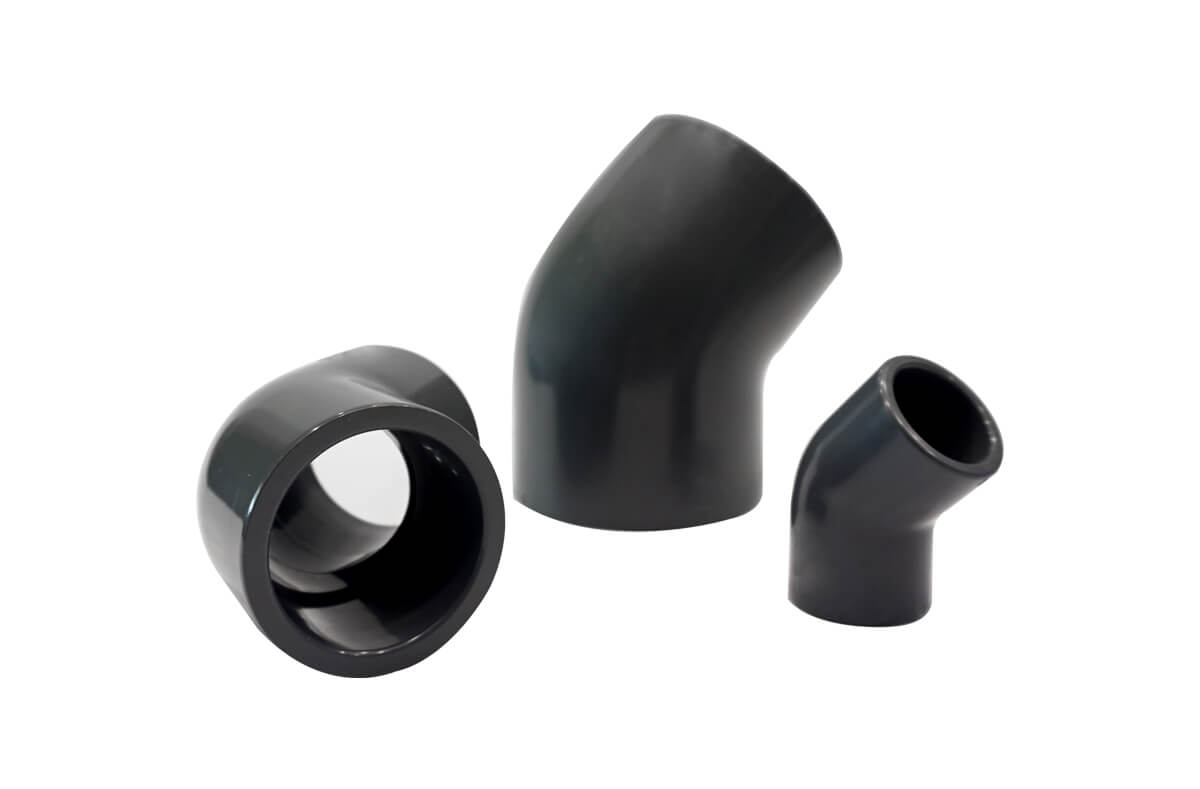

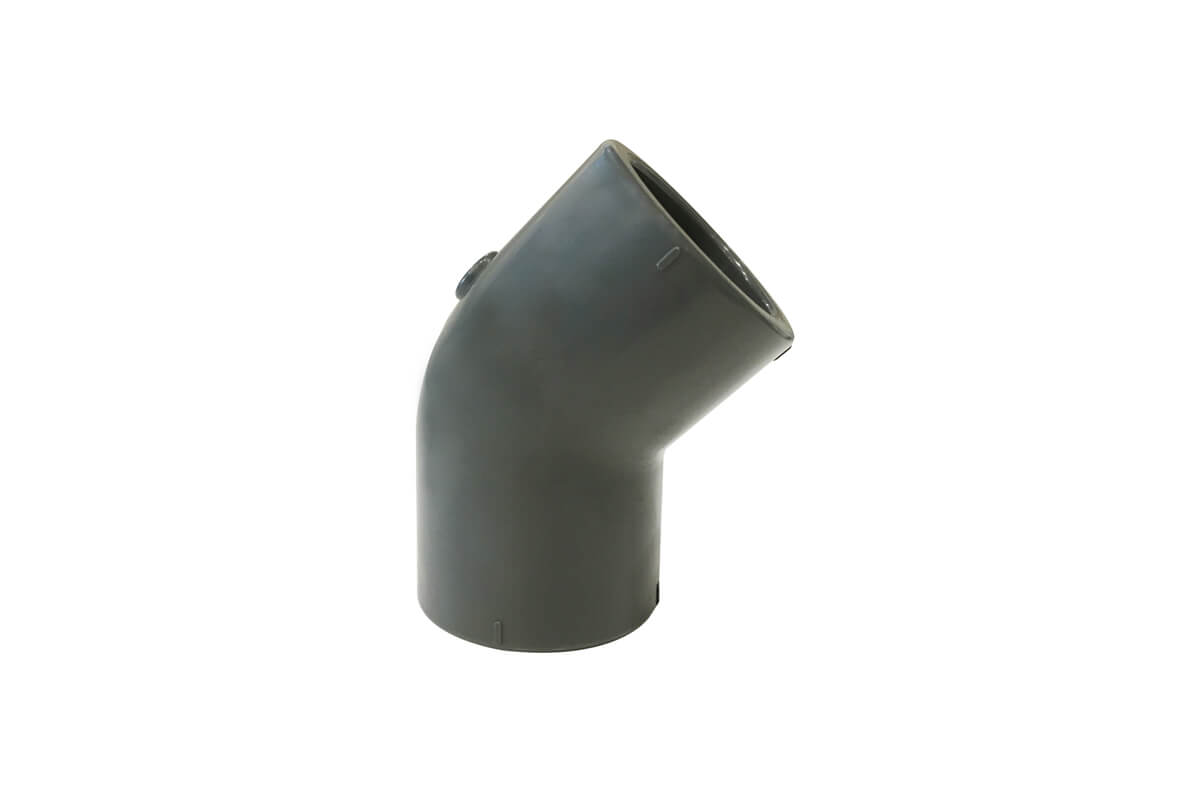

45°ELBOW

  • 45°ELBOW
  • 45°ELBOW

45°ELBOW

Applocations：

  • Durable one piece molded
  • Suitable for chemical pipe or water distribution pipe-line systems
  • Non-corrosive and resistant to most chemicals
Inquiry
規格
Model No 45L
Size 1/2" to 12"
Standard JIS series
Material PVC
End type Socket*Socket

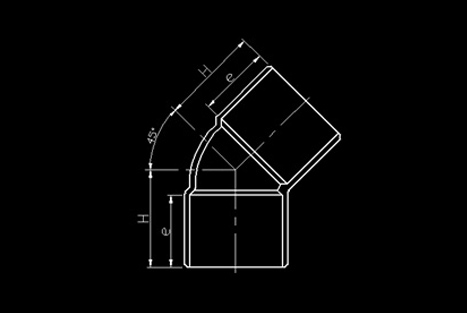

SIZE D d1 d2 d L H
1/2" 30.5 21.54 21.23 16.5 22.22 35.02
3/4" 38 26.87 26.57 22 25.4 40.7
1" 46 33.66 33.27 28 28.58 46.58
1-1/4" 55 42.42 42.04 35 31.75 54.75
1-1/2" 60 48.56 48.11 43 34.93 60.93
2" 75 60.63 60.17 54 38.1 70.1
2-1/2" 90 73.38 72.85 69 44.45 82.45
4" 133 114.76 114.07 105 57.15 116.15

Dimensions JIS (Drainage)

Part e H
1"x2mm 26 34
1-1/4"x2mm 20 30
1-1/2"x2mm 22 34
2"x2mm 25 40
2"x3mm 25 40
2-1/2"x2.5mm 35 53
2-1/2"x3mm 35 53
3"x3mm 40 63
3-1/2"x3mm 50 73.5
4"x3.5mm 50 78
5"x3.5mm 65 100
6"x4mm 80 120
8"x7.5mm 100 155
10"x8.5mm 130 191
12"x10mm 150 223

Dimensions JIS (Water supply)

Part e H
40      (1 1/2") 55 69
50      (2") 63 80
65      (2 1/2")   69 90
80      (3") 80 105
100    (4") 92 121
125    (5") 112 150
150    (6") 140 185
200    (8") 172 224
250    (10") 185 248
300    (12") 260 380
