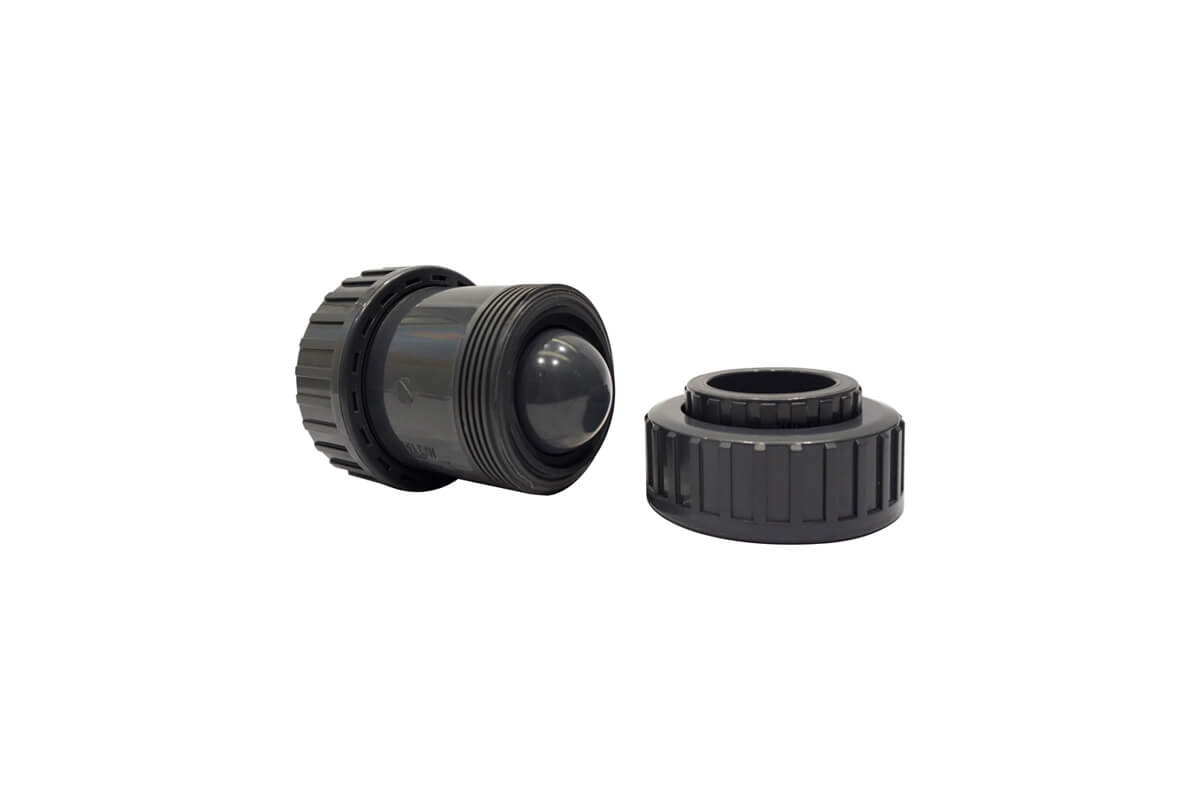

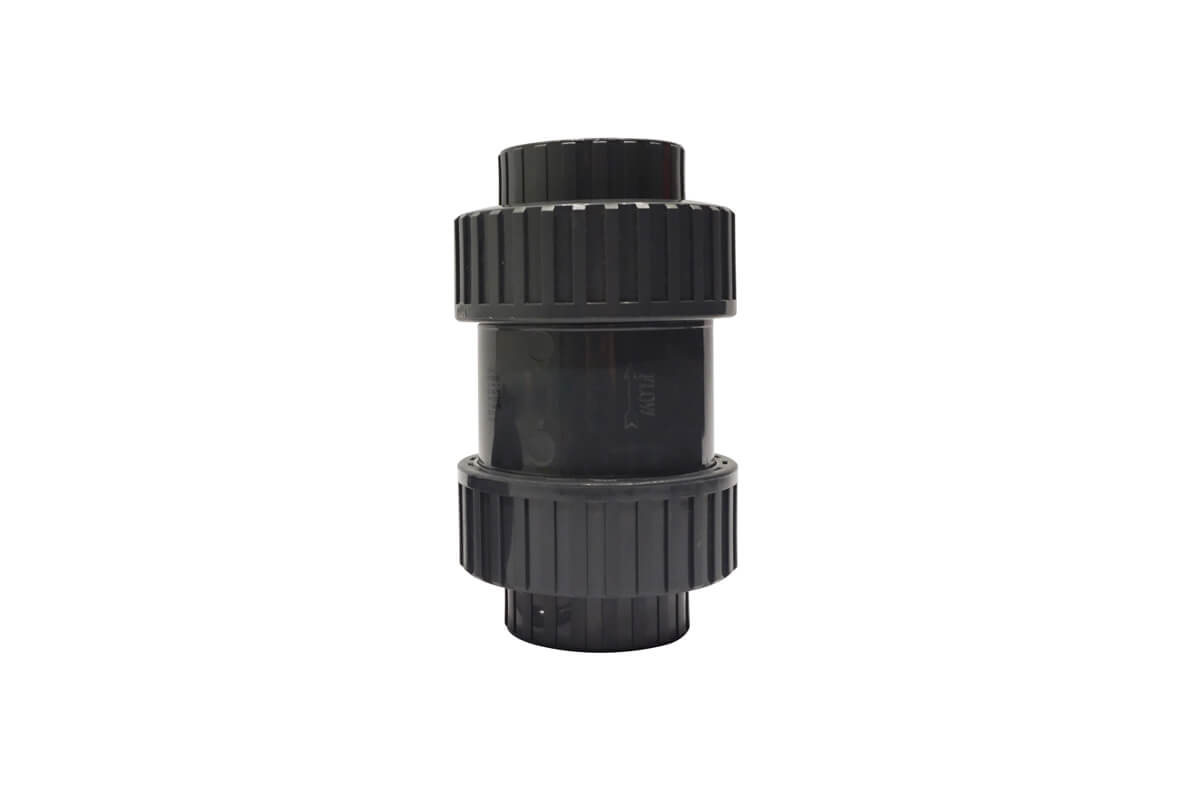

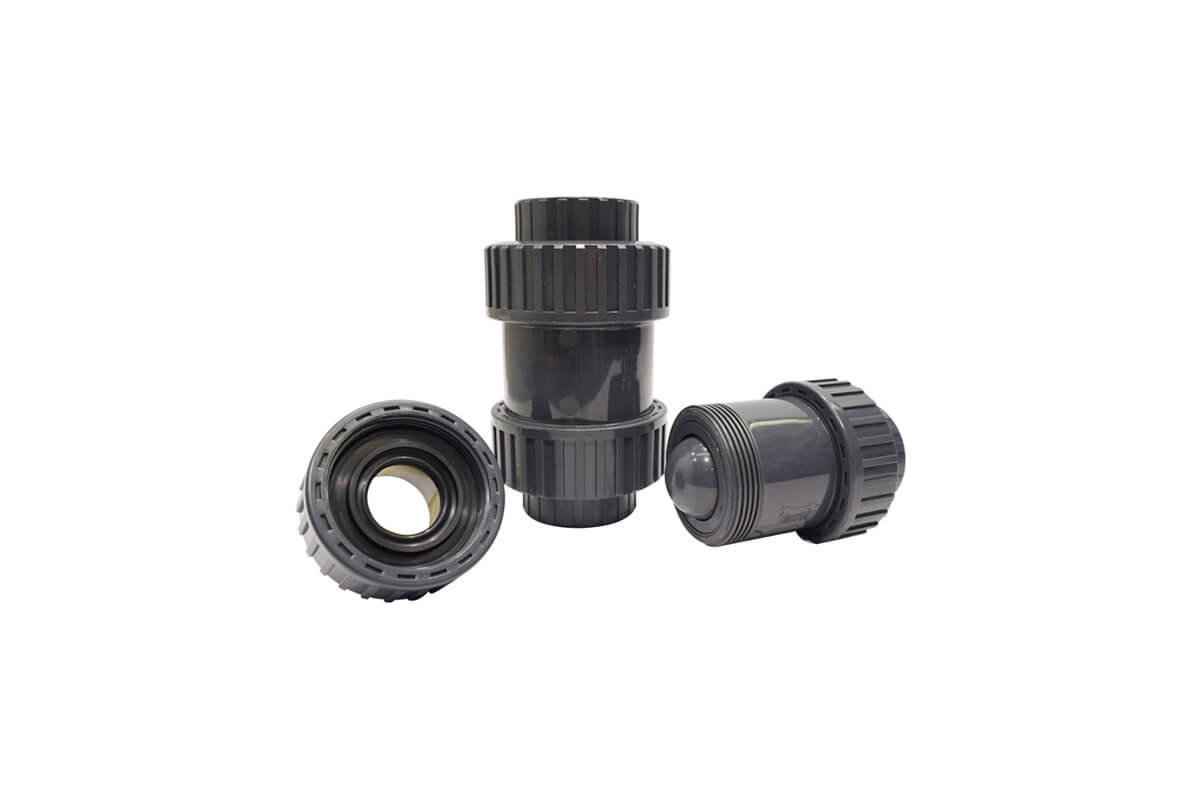

KDJ-600 TRUE UNION BALL CHECK VALVE

  • TRUE UNION BALL CHECK VALVE
  • TRUE UNION BALL CHECK VALVE
  • TRUE UNION BALL CHECK VALVE

KDJ-600
TRUE UNION BALL CHECK VALVE

Applocations：

  • Pressure rating: 150 PSI @23°C(73.4°F)
  • Minimum flow pressure: 5 PSI
  • Vertically installed
  • Ball sealing design with good sealing function
  • Easy maintenance
Inquiry
Specifications
Model No KDJ-600
Size 1/2" to 2-1/2"
Standard ANSI, BS, CNS, DIN, JIS (Socket) / NPT, BSPT (Threaded)
Material UPVC
Seat EPDM, FPM, NBR
O-ring EPDM, FPM
End type Socket, Threaded

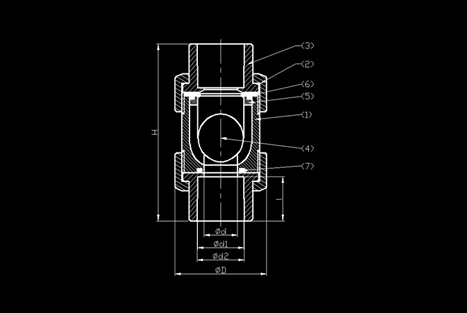

No. Part Material Q'TY
1 Body UPVC 1
2 Stem O-ring UPVC 2
3 Stem UPVC 2
4 Ball UPVC 1
5 Seat Seal UPVC 1
6 Carrier O-ring EPDM, FPM, NBR 1
7 Seal Carrier EPDM, FPM 1
SIZE
NOM.		 15mm
(1/2")		 20mm
(3/4")		 25mm
(1")		 32mm
(1-1/4")		 40mm
(1-1/2")		 50mm
(2")		 65mm
(2-1/2")
JIS l 22.2 25.4 28.6 31.8 34.9 38.1 38.1
d1 22.3 26.3 32.33 38.43 48.46 60.56 76.6
d2 21.7 25.7 31.67 37.57 47.54 59.44 75.87
DIN l 16 19 22 26 31 38 38.1
d1 20.3 25.3 32.3 40.3 50.3 63.3 75.3
d2 19.9 24.9 31.9 39.9 49.9 62.9 74.9
ANSI l 22.22 25.4 28.58 31.75 34.93 38.1 38.1
d1 21.54 26.87 33.65 42.42 48.56 60.63 73.38
d2 21.23 26.57 33.27 42.04 48.11 60.17 72.85
thd. / in NPT 14 14 11.5 11.5 11.5 11.5 8
BSPT 14 14 11 11 11 11 11
D 56 56 67 98 98 120 120
d 13.3 20 25 32 40 50 50
H 123 123 139 168 168 202 202
