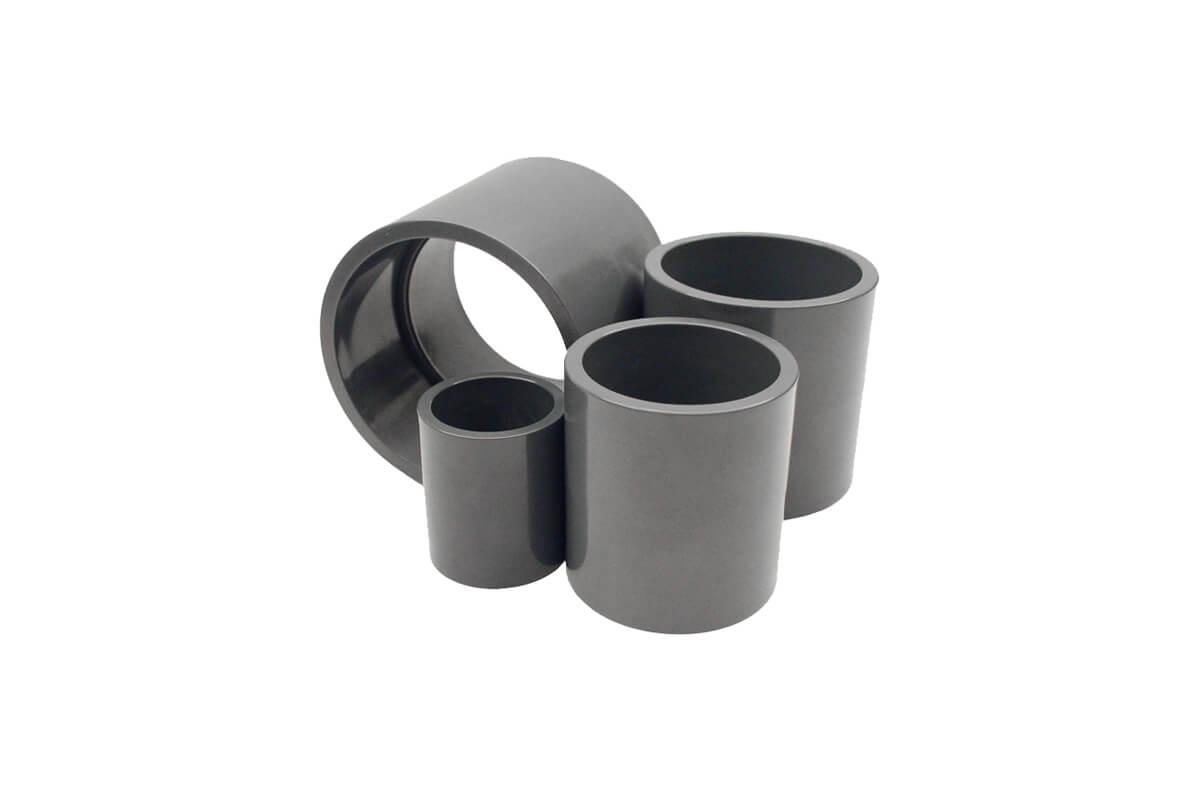

COUPLING

  • COUPLING

COUPLING

Applocations：

  • Durable one piece molded
  • Suitable for chemical pipe or water distribution pipe-line systems
  • Non-corrosive and resistant to most chemicals
Inquiry
Specifications
Model No Coupling
Size 1/2” to 12”
Standard ASTM (SCH40, SCH80), ASTM Clear series, JIS
Material PVC, UPVC
End type Socket*Socket

Dimensions SCH80

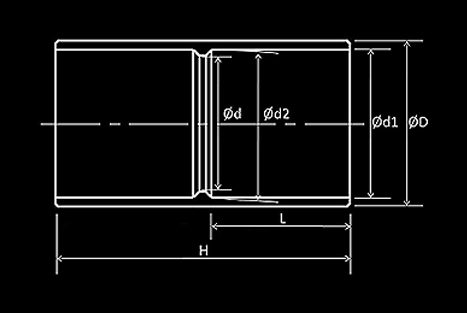

SIZE D d1 d2 d L H
1/2" 30.5 21.54 21.23 16.5 22.22 52
3/4" 37 26.87 26.57 22 25.4 60
1" 47 33.66 33.27 28 28.58 65
1-1/4" 55.5 42.42 42.04 35 31.75 75
1-1/2" 63 48.56 48.11 42.5 34.93 79.5
2" 75 60.63 60.17 54 38.1 88
2-1/2" 89 73.38 72.85 65 44.45 100
3" 106 89.31 88.70 80 47.63 108
4" 133 114.76 114.07 100 57.15 126

Dimensions (Drainage/Water supply)

Part e H
13 (3/8") 26 57
16 (1/2") 30 65
20 (3/4") 35 77
25 (1"-W) 40 87
28 (1") 40 87
35 (1 1/4") 44 95
40 (1 1/2") 55 117
50 (2") 63 133
65 (2 1/2") 69 147
80 (3") 72 155
90 (3 1/2") 80 166
100 (4") 92 200
125 (5") 112 235
150 (6") 140 300
200 (8") 172 360
250 (10") 185 400
300 (12") 258 522
